H-Type 3 Axis Servo Welding Positioner Robot External Axis for Workpiece Automatic Robotic Arc Welding

Name: HType 3 Axis Servo Welding Positioner Robot External Axis for Workpiece Automatic Robotic Arc Welding
Brand: CNGBS
Price: 13 USD

Quality H-Type 3 Axis Servo Welding Positioner Robot External Axis for Workpiece Automatic Robotic Arc Welding for sale

machinery test report : Provided

Protection Rating : IP65

Slewing Speed Control : Automatic

Flip Motor Power : 1kW / 1.5kW / 2kW / 3kW

Weight (kg) : 500

video outgoing-inspection : Provided

MOQ : 1

Accuracy : ≤ 1 arcmin

Model : GBS-02-H500/1000/2000-2

Flip Angle : 0-360°

Place of Origin : Shanghai, China

warranty : 1 Year

Load Capacity : 500kg / 1000kg / 2000kg

Power (W) : 3 kW

Rotation Speed : Adjustable

Input Power : 220V/380V 50/60Hz

core components : Motor

Voltage : 220 V

Table Height : 800mm (custom/non-standard)

Brand Name : CNGBS

Price : $13,500

Contact Now

Product descriptions from the supplier

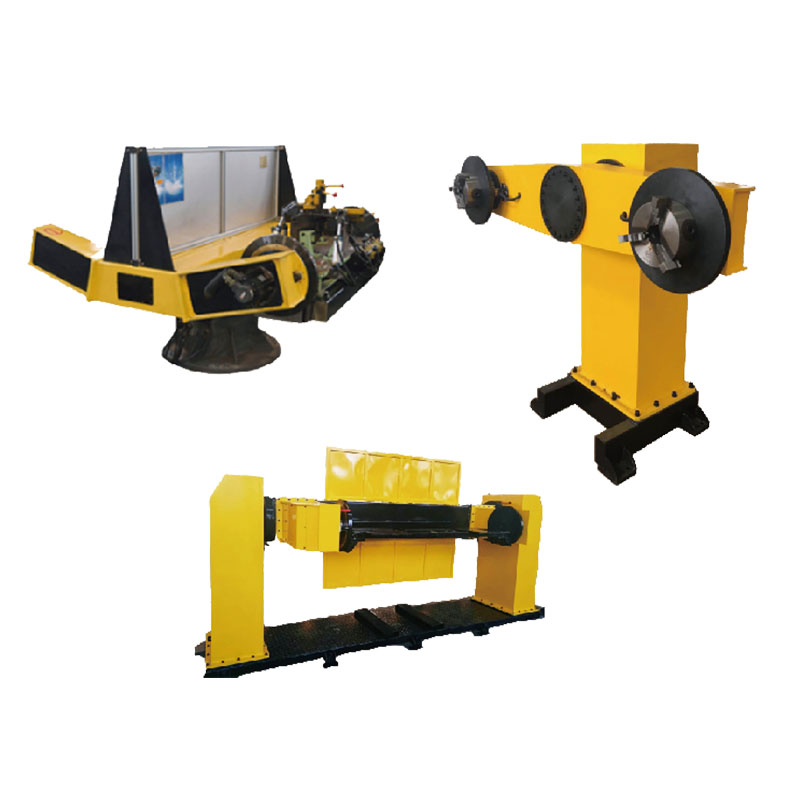

CNGBS GBS-02-H500/1000/2000-2 H-Type 3-axis vertical tilting servo welding positioner, 500-2000kg load capacity, integrates rotation, tilt and vertical lifting as robot external axis for synchronous coordinated motion

Heavy-duty H-frame welded steel structure, high rigidity and anti-deformation performance, specially developed for long beam, shaft, pipe and large-size structural workpieces

Three-axis compound motion adjusts workpiece height, angle and rotation freely, eliminates welding dead angles, converts overhead & vertical welding into flat-position welding to improve weld quality

Standard bus communication interface, widely compatible with mainstream industrial robot brands; easy to integrate with robot arm, welding power source and ground rail for full-automatic welding cell

Built-in limit switches, emergency-stop and overload protection; support customized fixture mounting plate, stable operation under harsh welding workshop with dust and spatter

H-Type 3 Axis Servo Welding Positioner Robot External Axis for Workpiece Automatic Robotic Arc Welding
